Open Modeled Dialog
Function:
This tool opens a dialog to enable user inputs and to return tool outputs to the user.
Tool Attribute:
| Attribute | Type | Description |
|---|---|---|
| Title [O] | String
(multi-line) |
Specifies the title of a dialog. |
| Description [O] | String
(multi-line) |
Specifies the description of a dialog. |
| Dialog Type | Selection | Specifies whether an input or an output dialog is opened. Allowed values are Input Dialog or Output Dialog. |
| Validate Action [O] | Action Descriptor | The validate action is used to validate dialog fields before sending the values to the next tool. |
| Relationship | Cardinality | Description |
|---|---|---|
| Table_Row_Selection | 0..* | Enables you to define a condition under which the rows of a dialog table are selected when the dialog is opened. |
Parameters:

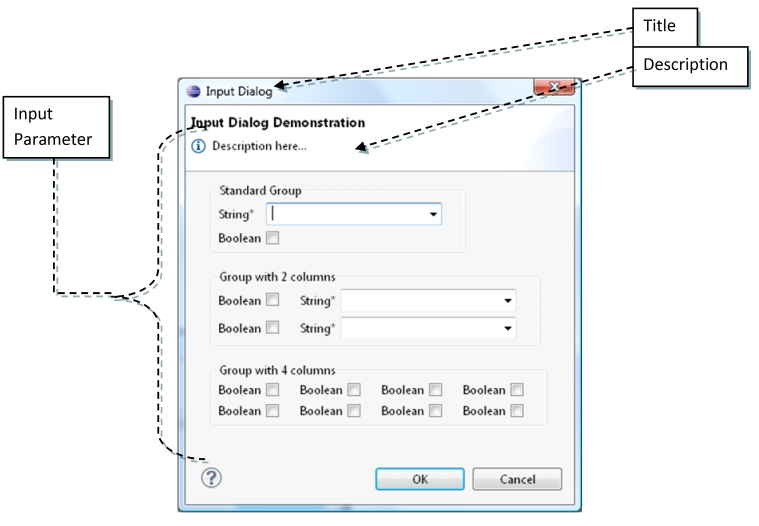

Input parameters generate dialog fields.
Output parameters are not used.
Every input parameter of a Dialog-Tool descriptor generates a dialog box field when executed. The appearance of a dialog box field changes depending on whether a property or a file descriptor is referenced by a parameter. This is shown in the following table:
| Parameter reference | Dialog field Input Dialog | Dialog field Output Dialog |
|---|---|---|
| Property
(Type = String) |
Combo box
Text input or selection of the last user inputs |
Single-line read-only text field |
| Property
(Type = Boolean) |
Check box | Read-only check box |
| Property
(Type = Select Value) |
Combo box
Selection of modeled property values |
Single-line read-only text field |
| Property
(Type = Date) |
Combo box with Calendar button and selection of the last user inputs | Single-line read-only text field |
| Property
(Type = Password) |
Password field | Single-line read-only text field. All characters are replaced by asterisks. |
| Property
(Type = Time) |
Time selection field | Single-line read-only text field |
| Property
(Type = TextArea) |
Multi-line text field with “remaining lines” indicator | Multi-line read-only text field |
| Property
(Type = TextArray) |
Selection list
A “Retrieve All Values” action is required for the TextArray property for populating the selection list. |
|
| Property
(Type = Numeric) |
Combo box with number validation and selection of last user inputs. If the attribute Value_min_length was set to 2 or higher, leading zeros are added on dialog box confirmation. | Single-line read-only text field |
| File Descriptor
(Unstructured) |
Multi-line read-only text field with the option of opening the content in an editor after the end of the dialog box. | |
| File Descriptor
(Structure = Table) |
Table in which one row can be marked. All the properties of the marked row are output. Read-only if the UI Editable attribute is set to false. | Read-only table |
