Autoinstall Processing

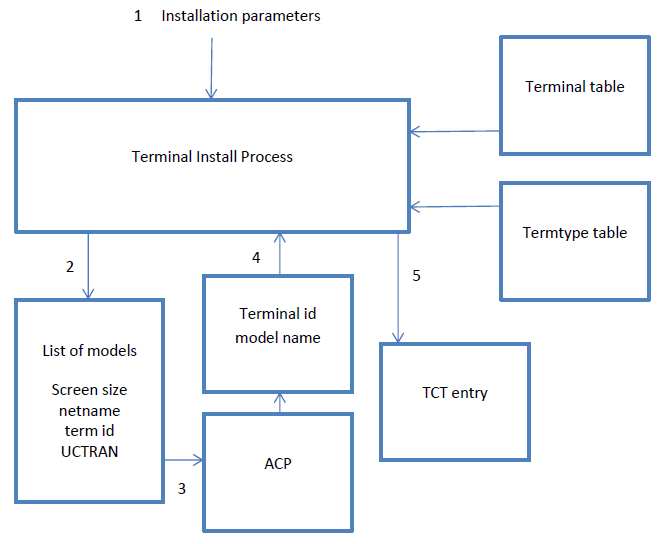

This section explains the process and information flows when a user starts a 3270 terminal emulator from the Enterprise Developer IDE.

1. The autoinstall process receives information from the terminal installation parameters.
2. The autoinstall process builds a list of models (from resource definitions in the terminal control table), with screen sizes compatible with the physical terminal.
3. The autoinstall process calls the ACP, supplying it with the following information:
   • The list of autoinstall model names
   • The physical screen size
   • The netname
   • A suggested terminal ID (last four characters of the netname)
   • Whether or not UCTRAN was set
4. The ACP returns the parameters that CICS support needs to create a terminal control table entry dynamically. These are:
   • Terminal ID
   • Terminal model name

   The ACP also supplies the name of a printer and alternate printer to be associated with the terminal.

5. CICS support dynamically creates a terminal control table entry, using the returned parameters and the terminal model definition.
