Specifying the Tool Descriptors

You need to specify four tools for this tutorial:

Specifying a Tool to Get All Projects

To specify a tool to get all projects:

Right-click the Tool Descriptors category folder, and then click New Child > Eclipse > Get Eclipse Projects .
This opens the Enter Object ID dialog box.
In the New ID field, next to the Get Eclipse Projects field, type TUTORIAL_TOOL_GetProjects.
In the New ID field, next to the Eclipse Resources field, type TUTORIAL_FD_EclipseResources.
In the New ID field, next to the Filter field, type TUTORIAL_PROP_ResourceFilter.
In the New ID field, next to the Project Nature ID field, type TUTORIAL_PROP_ProjectNature.
Click OK.
This creates a tool with a String Input Parameter and File Output Parameter and additional entries in the Properties and File Descriptors category.
Right-click String Input Parameter, and then click Edit.
This opens the Edit Properties dialog box.
Double-click the Static Value value cell, and then type .*com.microfocus.eclipse.*
Click OK.

To specify a tool to get children of an Eclipse resource:

Right-click the Tool Descriptors category folder, and then click New Child > Eclipse > Get Resource Children .
This opens the Enter Object ID dialog box.
In the New ID field, next to the Get Resource Children field, type TUTORIAL_TOOL_GetResChildren.
Click OK.
This creates a tool with a String Input Parameter and a File Output Parameter and an additional entry in the Properties category.
Click OK.

To specify a tool to rename an Eclipse resource:

Right-click the Tool Descriptors category folder, and then click New Child > Eclipse > Rename Resource .
This opens the Enter Object ID dialog box.
In the New ID field, type TUTORIAL_TOOL_RenameRes.
Click OK.
This creates a tool with two String Input Parameter children.
Right-click the first String Input Parameter, and then click Edit.
This opens the Edit Properties dialog box.
Set the attribute Mass Processing to false.
Click OK.
Right-click the second String Input Parameter, and then click Edit.
This opens the Edit Properties dialog box.
Set the attribute Mass Processing to false.
Double-click the Target ID Parm value cell, then click TUTORIAL_PROP_PARM_NewName.
Double-click the Parameter From value cell, and then click Previous_Tool.
Click OK.

To specify a dialog tool to accept a new name for an Eclipse resource:

Right-click the Tool Descriptors category folder, and then click New Child > AWM > Open Modeled Dialog .
This opens the Enter Object ID dialog box.
In the New ID field, type TUTORIAL_TOOL_DIA_RenameInput.
Click OK.
Right-click TUTORIAL_TOOL_DIA_RenameInput, and then click Edit.
This opens the Edit Properties dialog box.
Double-click the Description value cell, and then type Rename resource &TUTORIAL_PROP_ResourceID..
Double-click the Title value cell, and then type Eclipse Tutorial.
Click OK.
Right-click TUTORIAL_TOOL_DIA_RenameInput, and then click New Child > Dialog Field .
Double-click the Target ID Parm value cell, and then click TUTORIAL_PROP_PARM_NewName.
Click OK.
You can now preview the dialog box that the Open Modeled Dialog tool creates:
Right-click TUTORIAL_TOOL_DIA_RenameInput, and then click Preview Dialog.

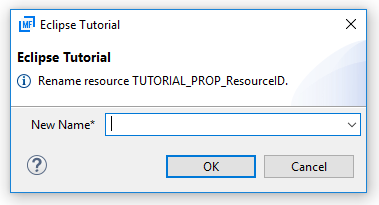

This opens a preview of the Eclipse Tutorial dialog box.
Click Cancel.
This closes the preview dialog box.

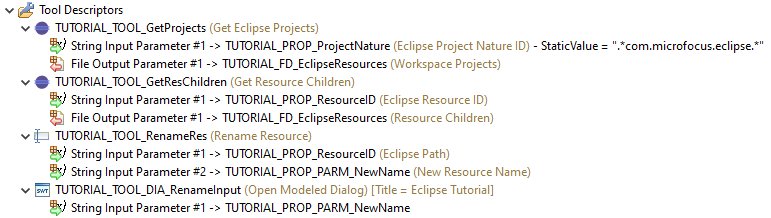

Your four tool descriptors should look like:
