Installing the AWM AMB Model File

There are several ways to make the AWM AMB model available in the AWM Team Developer perspective, see Master Configuration in the Workflow Manager Modeling Guide for more information.

1. Copy the provided AMB.model file from its default location in %ProgramFiles(x86)%\Micro Focus\Enterprise Developer\etc\AMB to an alternative local location of your choice.
2. To create a local master configuration file with the AMB application entries, copy the sample local master configuration file, MasterConfig.xml, located by default in %ProgramFiles(x86)%\Micro Focus\Enterprise Developer\etc\AMB, into your Eclipse root folder, and adapt the reference to the model location as described in the file. The default Eclipse root folder for Enterprise Developer is %PUBLIC%\Micro Focus\Enterprise Developer\eclipse.
   Note: If a MasterConfig.xml file already exists in the Eclipse root folder, merge the application entries from the AMB master configuration file into this existing master configuration file.
3. Start Enterprise Developer.
4. To add the local system to the Application Explorer view and load the AMB model, right-click the Application Explorer view, and then click Add System(s).

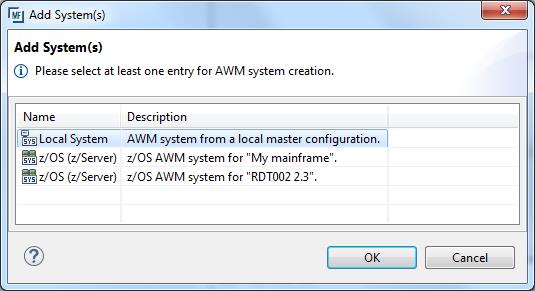

   This opens the Add System(s) dialog.

5. Select AWM system from a local master configuration, and then click OK.



   This adds the AppMasterBuilder system to the Application Explorer view.

6. Right-click the AppMasterBuilder system; then select Load Application.

   This adds the AppMaster Builder default AMB project to the Application Explorer view.

   The installation process is now complete.
