Specifying Relationships between Element Types and Properties

Properties and their relationships to Element Types need to be specified. In the Properties folder of the AWM Model:

1. Hold down Ctrl while you click the following properties:
   • TUTORIAL_PROP_ELE_CreationDate
   • TUTORIAL_PROP_ELE_TicketNumber
   • TUTORIAL_PROP_ELE_Raiser
   • TUTORIAL_PROP_ELE_Description
   • TUTORIAL_PROP_ELE_Status
   • TUTORIAL_PROP_ELE_Priority
2. Drag the selection and drop it on the TUTORIAL_ELE_Issue element type.

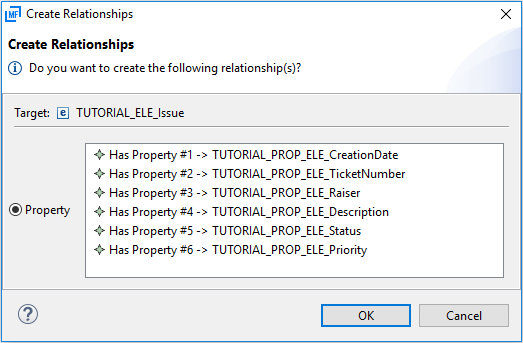

   This opens the Create Relationships dialog box.



3. Click OK.

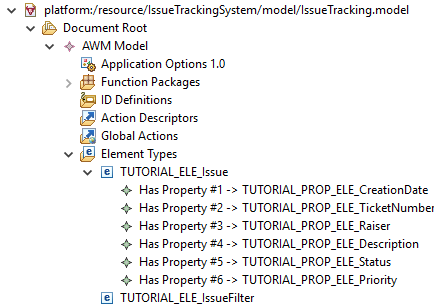

   Your TUTORIAL_ELE_Issue element type should now look like:




4. Select TUTORIAL_PROP_STATIC_IssueFilter then hold down Ctrl while you select TUTORIAL_PROP_ELE_EleType.
5. Drag the selection and drop it on the TUTORIAL_ELE_IssueFilter element type.

   This opens the Create Releationships dialog box.

6. Click OK.
7. Select TUTORIAL_PROP_ELE_Priority then hold down Ctrl while you select TUTORIAL_PROP_ELE_EleType.
8. Drag the selection and drop it on the TUTORIAL_ELE_PriorityFilter element type.

   This opens the Create Relationships dialog box.

9. Click OK.
10. Click File > Save .
