Advanced tab

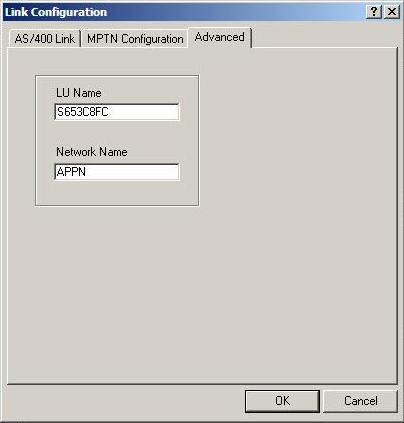

The table beow describes the parameters on the Advanced page of the Link Configuration dialog box.
| Parameter | Description |
|---|---|
| LU Name | Displays the name of the AS/400’s logical unit. This is not an alias. This is the actual name of the AS/400 and is used to
make the connection. The
LU Name corresponds to the
System Name on the
Rumba Router page. The
System Name, however, can be an alias, while the
LU Name is always the actual name of the AS/400.
This name can be up to eight characters, including A-Z, 0-9, @, #, and $. |
| Network Name | Identifies the network you are connecting over. The
Network Name corresponds to the local network ID on the AS/400, and can be up to eight characters, including A-Z, 0-9, @, #, and $.
This name is used to identify the AS/400 on the network. |
