The ESMAC User Interface

The ESMAC interface is displayed using a browser. You can, therefore, monitor and control enterprise server instances across the Internet, or your intranet, from a browser.

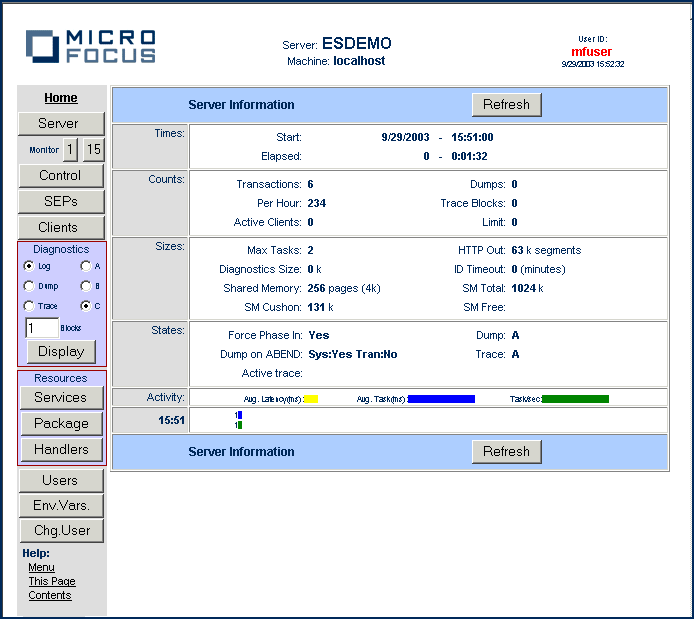

When you first view ESMAC, the Server Information page is displayed, as shown below:

ESMAC enables you to:

• Obtain information about the server you are currently connected to.
• Monitor services occurring on the server.
• View and change various parameters associated with server, such as the number of service execution processes, the active diagnostic datasets, and any trace control flags set.
• View information about service execution processes (SEPs), stop SEPs and obtain trace information for them.
• View information about client processes running on the server.
• View console logs, and dump and trace information.
• View information about the services, packages and request handlers defined on the server.
• Add, delete and change the permissions of users who can administer servers.
• View the environment variables associated with the server.
• Login as an administrator.

The ESMAC interface is split into two areas:

• A menu, in a sidebar on the left side of the page, which provides buttons with which you can control ESMAC.
• The main body of the page, which displays the monitor and control information. The information and controls available here depend on the button you click in the menu.
